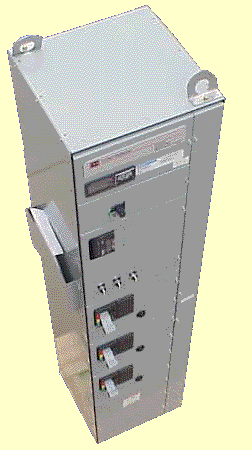

Standard Cutler Hammer MCC
with TEI Integral Controls
Modern Design, Flexible & Economical
Standard components include:
-
A single NEMA Class-1A (gasketed), 90" by 20", MCC enclosure
-
Service (3 Phase) on a 480 VAC, 600 amp main bus
-
Up to three 240 or 480 VAC motor size 2 starters
-
Proven, dependable PLC based 120 VAC control system
-
Use of up to six latching (VDC) probe relays
-
Power monitoring and over-current protection
Optional components for standard MCC include:
-
A 10KW transformer and lighting panel
-
A set of alarm contacts and a programmed autodialer
-
Probeless sight glass for use with hydro tanks
Standard PLC program controls:
-
One well pump, a ground storage tank, two booster pumps, a hydro tank, air compressor.
-
A fill valve, a ground storage tank, two booster pumps, a hydro tank, and air compressor.
-
One well pump, a backup fill valve, a ground storage tank, two booster, a hydro tank, and air compressor.
-
Two well pumps with starter packages, a ground storage tank, three booster pumps, a hydro tank, and air compressor.
-
Elevated storage tank in place of hydro tank and air compressor.
|
