                    Odor Control Skid





     Description
       The chemical feed pump rate is adjustable from 2.5 to 50 gallons per
       day at 25 PSI. Chemical dosing is controlled by a 24 hour or 7-day
       programmable timer capable of up to 10 on/off cycles per day. A
       bypass valve vents the chemical in an overpressure condition. Unit
       operates on 120 volts AC and 100 hour capacitor back-up of memory

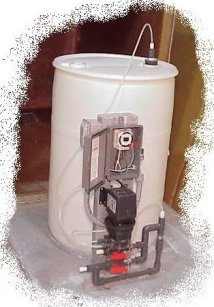

       and display. Unit is available housed with room for 55 gallon drum, and
       unhoused (as shown). A hydrogen peroxide dilute solution is generally
       used, although unit is capable of handling approximately 200 different
       chemicals.

Engineer's Specs Suggested Specifications for this and other TEI Controls products.
